Dewatering screen
Dewatering screen
Advantage characteristics:
1. Low noise and easy maintenance.
2. Reasonable structure, sturdy and durable.
3. The dehydration effect is good, safe and reliable.
4. The screening treatment capacity is large and the screening efficiency is high.
working principle:
It adopts dual motor self-synchronization technology, universal eccentric block and adjustable amplitude vibrator. The screen is mainly composed of a sieve box, a vibration exciter, a support system and a motor. Two mutually unconnected vibrators are used for synchronous reverse operation. The centrifugal forces generated by the two sets of eccentric mass are superimposed along the component of the vibration direction, and reverse centrifugally canceled, thereby forming a single exciting vibration along the vibration direction, so that the screen box is reciprocated. Linear motion
Technical Parameters:
|
specificationmodel
|
Minimum 30°% solids feedstock concentration |
Single motor power (kW) × quantity (set) |
||||||
|
Fine coal theoretically -0.5+0.1 (mm) specific gravity1.5 |
Coarse sand is about -5 (mm) 100%, -0.6 (mm) 50%, specific gravity 2.7 |
Fine sand 90% -1 (mm)proportion2.7
|
980 (r/min) |
1460 (r/min) |
||||
|
1460 (r/min) |
980 (r/min) |
1460 (r/min) |
980 (r/min) |
1460 (r/min) |
980 (r/min) |
|||
|
VD6 |
6~8 |
10 ~13 |
14 |
28 |
10 |
21 |
|
2 ×2 |
|
VD9 |
9~12 |
15 ~20 |
21 |
42 |
16 |
32 |
3×2 |
|
|
VD12 |
15 ~19 |
24 ~30 |
33 |
67 |
25 |
50 |
2.6×2 |
4×2 |
|
VD15 |
30 ~35 |
50 ~60 |
63 |
125 |
47 |
94 |
2.4×4 |
2.25×4 |
|
VD18 |
35~45 |
60 ~80 |
77 |
153 |
57 |
115 |
|
3.7×4 |
|
VD21 |
— |
85~100 |
—
|
225 |
— |
164 |
15 |
— |
|
VD24 |
95~110 |
250 |
190 |
|||||

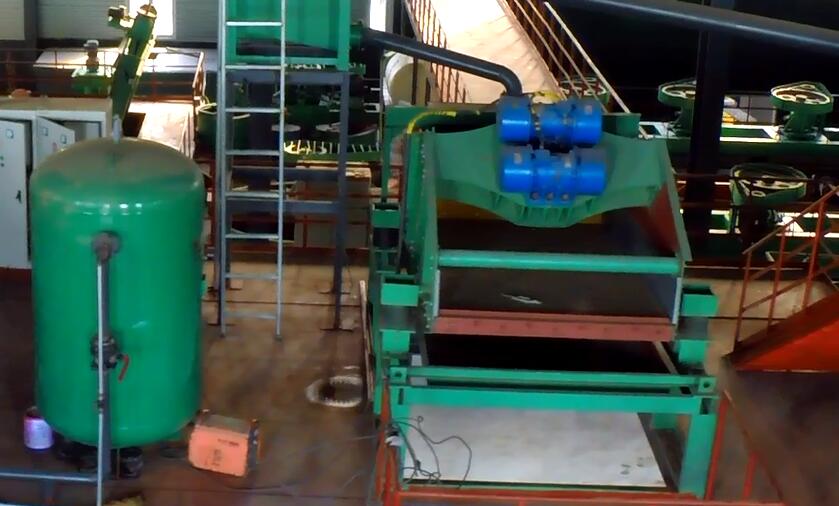

Case picture:
