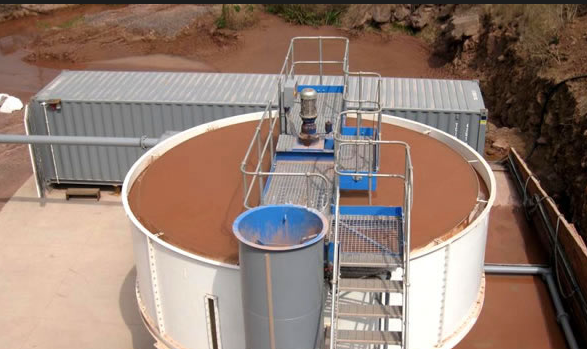

GX type high efficiency thickener
GX type high efficiency thickener
Advantage characteristics
1. Adding flocculant can increase the particle size of settling solid particles, thus speeding up the settling speed.
2. Installing inclined slabs can shorten the settlement distance of ore particles and increase the settlement area.
3、The functions of flocculation, filtration, compression and capacity improvement of slurry deposited dense phase layer are brought into full play and equipped with complete automatic control facilities.
Working principle
Material enters the concentration tank after entering the steady flow cylinder through the inlet port. The motor drives the main bearing to rotate and drives the bracket to rotate. A certain amount of flocculant is added to the pulp material in the concentration tank. Under the rotating action of the bracket, the mineral particles in the pulp form flocculant, which speeds up the settling speed of the aggregated material, thus realizes the concentration of the pulp and achieves the purpose of improving the concentration efficiency.。
technical parameter
|
Technical parameters of GX concentrator |
||||||||||
|
型號 |
槽體內徑 |
槽體高度 |
沉降面積（m2） |
耙子轉速（r.p.m) |
耙子提升高度 |
驅動電機型號 |
提升電機型號 |
提升電機功率 |
鋼槽體重量 |
重量 |
|
Model |
inner diamenter of tank |
height of tank |
sedi mental area |
revolution height of the rabble |
lifting height of the rabble |
drving motor model |
liftion motor model |
lifting motor power |
weight of the tank |
Weight |
|
GX-3.6 |
3600 |
1700 |
10.2 |
1.1 |
200 |
Y100L-6 |
PZO.8AB |
0.8 |
2829 |
6650 |
|
GX-5.18 |
5182 |
2134 |
21 |
0.8 |
300 |
Y132M1-6 |
PZO.8AB |
0.8 |
5340 |
10460 |
|
GX-7.5 |
7500 |
2800 |
44.1 |
0.427 |
300 |
Y132M2-6 |
Y132S-8 |
2.2 |
10258 |
17320 |
|
GX-9 |
9000 |
2800 |
63.6 |
0.427 |
300 |
Y132M2-6 |
Y132S-8 |
2.2 |
15980 |
23680 |
|
GX-12 |
12000 |
3600 |
110 |
0.35 |
300 |
Y132M-4 |
Y100L1-4 |
2.2 |
25589 |
42756 |
