XJK (Type A) flotation machine
XJK (Type A) flotation machine
Advantages:
1. XJK flotation machine has the advantages of strong stirring force, less chemical consumption, can handle coarse and large density of ore, can adapt to complex processes, widely applied, and stable indexes.
2. In the lower part of the air cylinder, there is a circulation hole that regulates the circulation volume of the slurry, and the circulation amount is controlled by the gate.
working principle:
The XJK flotation machine constitutes one unit per two tanks. The first tank has a feed pipe to suck the slurry, also known as a suction tank or a suction tank; the second tank is a gravity tank or a DC tank. An intermediate chamber is arranged between the first groove and the second groove, the slurry is connected underneath, the impeller is mounted at the lower end of the main shaft, and the upper end of the main shaft has a pulley which is driven to rotate. The air is sucked by the intake pipe, and the level of the slurry of each group of flotation tanks is adjusted by the gate, and the cover and the air cylinder (also called the vertical pipe) are arranged above the impeller. The air cylinder is provided with a hole for installing the slurry pipe, the medium mine return pipe or used as a slurry circulation, and the size of the hole can be adjusted by the tie rod.
Technical Parameters:
Selection instructions: 1. In addition to the number of models, the flotation process must be provided at the time of ordering. The following contents are provided: the configuration scheme and the number of fixed scrapers and the transmission mode (right drive, left drive) fixed to the mine box. The number of intermediate boxes and original mining bins is back to other special requirements. 2. The motor starting device is equipped during production.
|
XJK type (A type) flotation machine technical reference number table |
||||||||||
|
規(guī)格型號 |
槽體容積（m3） |
葉輪直徑（mm） |
生產(chǎn)能力（m3/min） |
葉輪轉(zhuǎn)速（r/min） |
傳動電機型號 |
傳動電機功率 |
刮板電機型號 |
刮板電機功率 |
內(nèi)部尺寸（mm） |
重量(kg) |
|
standard model |
volume |
impeller dia |
productive capacity |
impeller rotational |
Type of Drive Motor |
Drive Motor power |
Scraper motor model |
Scraper motor power |
dimensions （L×W×H） |
weight |
|
XJK-0.13 |
0.13 |
200 |
0.05-0.16 |
593 |
Y90L-4 |
1.5 |
Y80M2-4 |
0.75 |
504×520×700 |
266 |
|
XJK-0.23 |
0.23 |
250 |
0.12-0.28 |
504 |
Y100L2-4 |
3 |
Y80M2-4 |
0.75 |
604×620×820 |
389 |
|
XJK-0.35 |
0.35 |
300 |
0.15-0.5 |
500 |
Y100L2-4 |
3 |
Y80M2-4 |
0.75 |
700×700×906 |
430 |
|
XJK-0.62 |
0.62 |
350 |
0.3-0.9 |
400 |
Y132S-6 |
3 |
Y90L-6 |
1.1 |
820×900×1156 |
630 |
|
XJK-1.1 |
1.1 |
500 |
0.6-1.6 |
330 |
Y132M2-6 |
5.5 |
Y90L-6 |
1.1 |
1100×1100×1269 |
1300 |
|
XJK-2.8 |
2.8 |
600 |
1.5-3.5 |
280 |
Y160L-6 |
11 |
Y100L-6 |
1.5 |
1750×1600×1450 |
2325 |

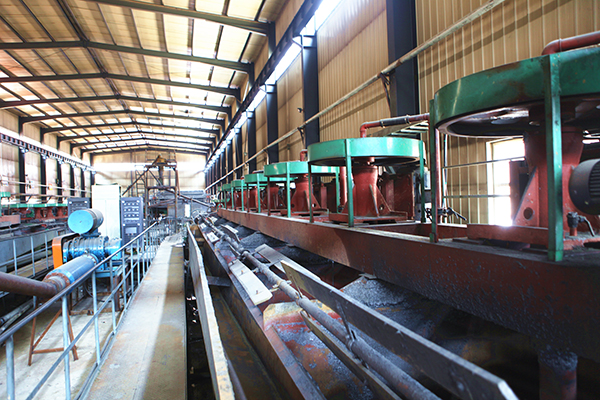

Case picture
